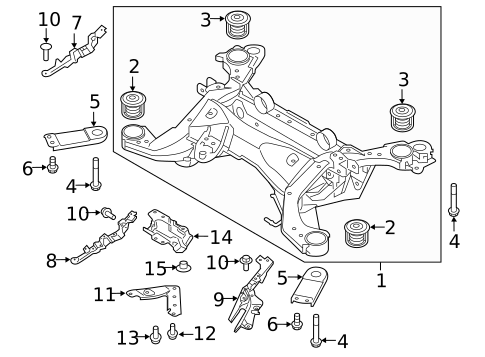

Suspension Mounting for 2019 Volvo S90
No.
Part # / Description / Price
Price
1
Cross-Member
Volvo
Volvo Description: Fwd, with active chassis. V90. With active suspension. S90. Awd, without plug in hybrid, with air suspension. Fwd, with air suspension.
1
Suspension Cross-Member Volvo
Volvo Description: Fwd, without air suspension, from ch 37798. Without awd, without air suspension, from ch 37798.
2
Suspension Cross-Member Front Bushing Volvo
Volvo Positions: Right
Notes: PARTS: Part included with suspension crossmember.
Description: S60. Front. S90. Vertical. Fwd, to ch 73018. With plug-in hybrid, to ch 582108. V90 Cross Country. V60 Cross Country. With awd, with polestar.
MSRP $69.61
$52.57
MSRP $69.61
$52.57
3
Suspension Cross-Member Rear Bushing Volvo
Volvo Positions: Right
Notes: PARTS: Part included with suspension crossmember.
Description: S60. Rear. S90. Vertical. Fwd. Awd, with plug in hybrid. V90 Cross Country. V60 Cross Country. Awd, with polestar. Without hybrid.
MSRP $69.61
$52.57
MSRP $69.61
$52.57
4
Suspension Cross-Member Mount Bolt Volvo
Volvo Positions: Left
Description: Fwd. Awd, with plug in hybrid. Awd, with polestar. Without hybrid.
MSRP $11.51
$8.99
MSRP $11.51
$8.99
5
MSRP $23.93
$18.69
6
Front Bracket Screw Volvo
Volvo Positions: Left
Description: Fwd. With recharge, m10x35. Without hybrid. With awd, without polestar.
MSRP $5.75
$4.49
MSRP $5.75
$4.49
7
Side Bracket Volvo
Volvo Positions: Right
Description: Fwd, without air suspension. Without awd, without air suspension.
MSRP $23.93
$18.69
MSRP $23.93
$18.69
8
Side Support Volvo
Volvo Positions: Right
Description: Fwd, with air suspension. Without awd, with air suspension. Awd, without polestar, to ch 28602. With awd, to ch 117609. With awd, without polestar, to ch 974. With awd, without hybrid.
MSRP $23.93
$18.69
MSRP $23.93
$18.69
9
Side Support Volvo
Volvo Positions: Left
Description: Fwd, with air suspension. Without awd, with air suspension. Awd, without polestar, to ch 28602. With awd, to ch 117609. With awd, without polestar, to ch 974. With awd, without hybrid.
MSRP $23.93
$18.69
MSRP $23.93
$18.69
10
Side Member Assembly Bolt Volvo
Volvo Positions: Left
Description: Fwd. 2007-14. Awd, with plug in hybrid. 3.2L, 3.0L turbo, 2.5L, 3.0L turbo, 3.2L. Without hybrid. Upper. M8x20. With plug-in hybrid, hybrid battery front, to ch 501732. With awd, with polestar.
MSRP $3.99
$3.11
MSRP $3.99
$3.11
11
MSRP $23.93
$18.69
12
Reinforced Bracket Screw Volvo
Volvo Positions: Right
Description: Fwd. Without auto level. With awd, with hybrid.
MSRP $5.75
$4.49
MSRP $5.75
$4.49
13
Reinforced Bracket Screw Volvo
Volvo Positions: Left
Description: Fwd, m10x35. Without awd, m10x35. Without hybrid. With awd, without polestar. With awd, with polestar, m10x35.
MSRP $5.75
$4.49
MSRP $5.75
$4.49
14
Protect Plate Volvo
Volvo Description: Fwd. With awd, to ch 168184. Awd, without cross country. Awd, with polestar. With awd, with hybrid.
MSRP $14.79
$11.55
MSRP $14.79
$11.55
15
MSRP $2.52
$1.96

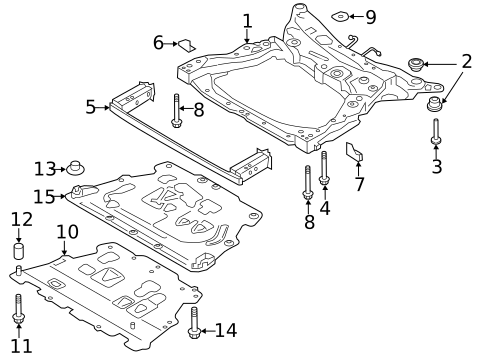

No.
Part # / Description / Price
Price
2
Engine Cradle Bushing Volvo
Volvo Description: S60. Awd. Front. V90 Cross Country. Fwd. V60 Cross Country.
MSRP $31.38
$21.06
MSRP $31.38
$21.06
4
Engine Cradle Mount Bolt Volvo
Volvo Description: To ch 578773. M14x112. To ch 49447. Awd. Fwd.
MSRP $11.51
$8.99
MSRP $11.51
$8.99
5
Lower Impact Bar Volvo
Volvo Description: Fwd, to ch 108404. To ch 161856. Awd, to ch 108404.
MSRP $271.92
$205.36
MSRP $271.92
$205.36
6
Lower Impact Bar Bracket Volvo
Volvo Positions: Right
Description: To ch 578773. Awd, to ch 108404. To ch 511603. To ch 49447. Fm ch 578774. To ch 368332. Fm ch 49448.
MSRP $23.93
$18.69
MSRP $23.93
$18.69
7
Lower Impact Bar Bracket Volvo
Volvo Positions: Left
Description: To ch 578773. To ch 511603. Fwd, to ch 108404. To ch 49447. To ch 368332. Awd, to ch 108404.
MSRP $23.93
$18.69
MSRP $23.93
$18.69
8
Lower Impact Bar Front Bolt Volvo
Volvo Description: To ch 578773. Awd. To ch 511603. Fwd. To ch 49447. With b5 & b6. 2022-25 without supercharger. 2022, m8x100.
MSRP $5.75
$4.49
MSRP $5.75
$4.49
10
Protective Plate Beneath Engine - Skid Plate Volvo
Volvo Description: Protects the engine- oil pan and transmission from impacts when driving in poor conditions- for example on bumpy or potholed roads. Fully covering aluminum plate that also prevents impacts from loose stones. Protects the engine, oil sump and transmission from impact when driving in poor conditions, for example, if the road is bumpy or potholed. A fully enclosing aluminum plate also prevents impact from loose stones.
11
Accessory Drive Belt Idler Pulley Bolt Volvo
Volvo Description: Awd. 2.0l, with supercharger. 2018-21, with supercharger. Fwd. 2019-21, with supercharger. 3.2L. With supercharger, with hybrid.
14
Protect Plate Retainer Volvo
Volvo Description: M8x30. Awd, 2022-25. With plug in hybrid. Fwd. Polestar, 2023-25.
MSRP $3.99
$3.11
MSRP $3.99
$3.11
15
Lower Cover Volvo
Volvo Description: To ch 578773. To ch 161856. Fc 21, to ch 368332. Awd. Fwd.
MSRP $210.16
$158.71
MSRP $210.16
$158.71

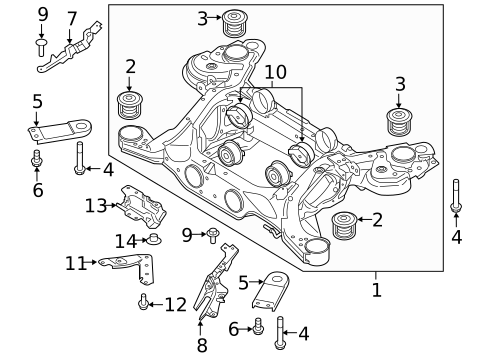

No.
Part # / Description / Price
Price
1
Sub-frame Volvo
Volvo Description: With awd, with polestar. S60. T8 models. With awd, with hybrid, without air suspension, from ch 41329.
MSRP $2,124.81
$1,509.47
MSRP $2,124.81
$1,509.47
1
4
Suspension Cross-Member Mount Bolt Volvo
Volvo Positions: Right
Description: Fwd. Awd, with plug in hybrid. Awd, with polestar. Without hybrid.
MSRP $11.51
$8.99
MSRP $11.51
$8.99
10
Mount Bushing Volvo
Volvo Positions: Right
Notes: PARTS: Part included with suspension crossmember.
Description: S90. With hybrid. Horizontal. T8. With awd, with polestar.
MSRP $111.77
$72.53
MSRP $111.77
$72.53
